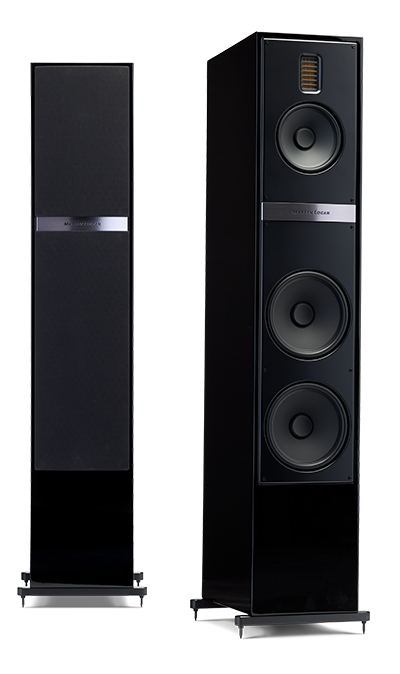

A powerful floorstanding speaker featuring a Folded Motion® XT tweeter, 6.5-inch aluminum cone midrange driver, and dual 8-inch aluminum cone woofers with rear-firing bass ports. Available in three stylish finishes: gloss black, matte white, and red walnut.
This is the flagship of the Motion Series. It's a powerful floorstanding loudspeaker featuring a Folded Motion® XT tweeter, 6.5-inch aluminum cone midrange driver, dual 8-inch aluminum cone woofers with rear-firing bass ports, and a proprietary Vojtko crossover network. XT stands for extreme: lifelike details from the lightning-fast Folded Motion XT tweeter, open and authentic midrange performance, coupled with deep, musical bass response. These classic performance technologies have been enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker's enclosure sports increased internal bracing, a reinforced baffle, and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.
Engineering, Without Compromises
What makes the Motion Series sound so amazing? MartinLogan's dedicated in-house engineering and design team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering and time-honored cabinet construction techniques. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price. Our 'no compromise' philosophy gives Motion Series a unique sound you won't find anywhere else.
Sound Inspired by Electrostatic Speakers
The success of the Motion Series is directly attributed to its close relation to MartinLogan’s legendary ultra-high-end electrostatic loudspeakers. The desire to transmute that level of performance into a more traditional loudspeaker at a more affordable price drove the initial design imperatives that created the Motion Series.
Folded Motion® XT Tweeters
MartinLogan's signature Folded Motion tweeter utilizes an extremely low mass diaphragm that "squeezes" air, thus demanding significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that's able to deliver much of the high-frequency detail and speed of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters, advanced thin-film transducer technology even further, with a 40% larger radiating surface and 80x30-degree controlled dispersion. This tweak increases audible bandwidth without sacrificing details and minimizes distortion to an unprecedented level while increasing efficiency and the tweeter's already lightning-fast response time. The result—superior realism and alarming specificity is aurally astounding, and only by MartinLogan.
Powerful Aluminum Cone Mid-Frequency and Bass Drivers
Custom built, low-distortion drivers pair high-power magnet structures with aluminum cone diaphragms to deliver massive excursion and sound output, preserve minute bass details, and maximize power handling capability, all without a hint of distortion. A unique concave dust cap design reinforces the strength and rigidity of the cone while reducing break up modes.
The use of aluminum for cones maximizes rigidity and strength of the drivers without adding excessive weight. This, along with the exceptional damping properties of aluminum, ensures the smooth, non-resonant response necessary for seamless blending with high-resolution Folded Motion tweeters. An added benefit of aluminum is its outstanding thermal conduction capability which allows cones to serve as efficient heat sinks for voice coils.
To deliver accuracy in the critical midrange, mid-frequency drivers feature a specially engineered "stiff" suspension. Stiffening the suspension (the spider and surround) raises the driver's resonant frequency and optimizes its performance to achieve a natural roll-off and inherently operate within an ideal range for a mid-frequency reproduction (as opposed to a comparably sized woofer).
Low-Mounted Woofers Minimize Floor Bounce
Floorstanding Motion models utilize purpose built designs that feature woofers positioned low in the cabinet and close to the floor. This deliberate design addresses a phenomenon known as floor bounce where sound reflected off the floor (from drivers positioned high on a cabinet), and those aimed directly at the listener interfere with each other. Without addressing these issues, listeners would experience bloated bass and massive increases and decreases in sound levels throughout critical midrange frequencies. Through careful crossover design and driver positioning, floorstanding Motion speakers deliver a flat, balanced response through the bass and midrange regions. Such considerations are crucial when seeking to achieve accurate reproduction of vocals and instruments such as kick drums.
Proprietary Vojtko™ Crossover Networks
Premium Motion Series speakers feature proprietary Vojtko crossover networks using polypropylene and low-DF electrolytic capacitors, custom-wound inductors, and thermal and current protection.
Vojtko crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is as big of a part of the "MartinLogan Sound" as are electrostatic and Folded Motion thin-film driver technologies. A Vojtko crossover isn't so much a set of design requirements as it is a philosophy. Vojtko crossovers are designed in such a way that all drivers are kept within their optimal frequency range and balanced with one another. The drivers themselves are as much a part of a Vojtko crossover as are capacitors and resistors. Before the design of any crossover begins, drivers are carefully selected or designed to operate within a very intentional frequency range and with precise and predictable performance parameters. Vojtko crossovers are always built from high-quality parts, and care is taken to avoid overly complex topologies—a straightforward objective due to the careful selection of woofers and tweeters. The final (and most critical) aspect of a Vojtko Crossover is that final voicing is conducted in a space that is indicative of a real-world environment. This pragmatic approach allows MartinLogan speakers to sound their best in real-world rooms.
Modern Design Featuring Luxurious Finishes

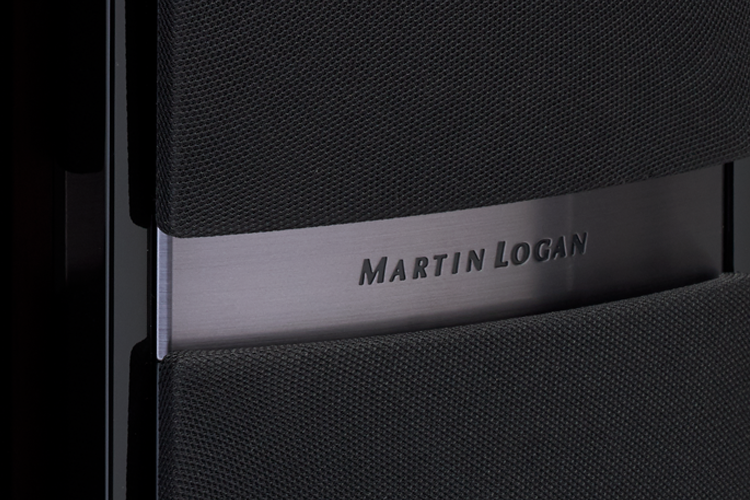

Discreetly hidden behind fabric wrapped magnetic grilles, Folded Motion and aluminum cone drivers are held securely in place beneath matte black trim that masks tweeter and woofer mounting hardware for a clean, modern aesthetic. Solid cabinets, designed to eliminate fidelity robbing vibrations, are constructed from 18mm (0.7-inch) MDF with 31mm (1.2-inch) thick front baffles. Motion 60XTi and 50XTi feature additional internal bracing to further reduce cabinet resonance.
MartinLogan's premier Motion Series speakers are available in three luxurious finishes and matching metallic trim—gloss black with black grilles and gunmetal grey trim, matte white with silver grilles and silver trim, and red walnut with black grilles and champagne colored trim.
Custom 5-Way Tool-less Binding Posts
Premium gold-plated 5-way tool-less binding posts assure a stable connection while accommodating a wide range of connections.
Two sets of binding posts accommodate bi-wire connections to increase signal carrying conductors and allow each portion of the crossover to be directly coupled to the amplifier.
MartinLogan Motion 60XTi. Aesthetics of Retrofuturism.
"[Translated] The experience of listening to different materials with different components of the system allows us to conclude that the MartinLogan 60XTi is a completely neutral and most transparent means of reproduction..."
"As I listened over several days, the Motion 60XTi’s kept singing the same song: taut, extended bass; a present, detailed, lively midrange; and a smooth, delicately extended top end that seemed just about perfectly balanced, neither muted nor over-emphasized."
"Whether you listen to a turntable such as me or stream your music, with the MartinLogan 60XTi you can put together a system for under $6,000 that will give you a wonderful listening experience for years, if not decades to come."
4 Ohm Compatibile con amplificatori da 4, 6 o 8 Ohm.
Frequenza di crossover
400 e 2.200 Hz
Trasduttore ad alta frequenza
Trasduttore XT da 1,25 "× 2,4" (3,2 cm x 6,1 cm) con movimento piegato XT con diaframma da 4,5 "x 2,75" (11,4 cm × 7 cm)
Trasduttore di media frequenza
Cono in alluminio da 6,5 ”(16,5 cm) con cestello in polimero fuso. Formato camera stagna. Coperchio antipolvere strutturato rigido per ridurre le modalità di rottura del cono.
Trasduttore a bassa frequenza
Due coni da 8 ”(20,3 cm) in alluminio con cestino in fusione di alluminio. Formato camera asimmetrica non risonante. Coperchio antipolvere strutturato rigido per ridurre le modalità di rottura del cono.
Bobina con nucleo ad aria personalizzata e induttori laminati in acciaio DCR basso. Condensatori a film di polipropilene in serie e condensatori elettrolitici a basso DF in parallelo. Protezione termica / corrente del tweeter.
Pali di rilegatura personalizzati a 5 vie senza attrezzi
66 libbre. (30 kg)
48 "x 11,4" x 14,4 " (121,8 cm x 29 cm x 36,6 cm)
Le specifiche sono soggette a modifiche senza preavviso
I bought a pair of Motion 60XTi in late 2020. Having never heard them before, the choice was partly based on my familiarity with Martin Logan and the respect they have in the audio community. User and professional reviews were very positive, and with a generous end of year sale I took the plunge. I was not disappointed. After break-in these speakers sing like few I've owned. They seem to disappear just leaving the music. The highs sizzle and float, mids are full and rich, and the bass is tight and extended. Vocals are outstanding. Soundstage is very large and deep. Driver integration seems very good. With a good recording and amplification they present a very satisfying you-are-there musical experience, leaving you tapping your feet or dancing with a smile on your face. Fit and finish are excellent, and they are efficient so you don't need a great deal of power. Given their price point it's difficult to fault them. Highly recommended!
I bought these Motion 60XTi in feb 2021. It is a superbe speaker finish and construction, in black gloss. They sound really transparent, the sound stage is wide and high, with an "excellent" bass. Thank's Martin Logan.
Just bought these speakers at the beginning of the year. I paired them with the 50XTI i have to say that these speakers are awesome. I replaced my old Klipsch RF7's with these i also picked up the Marantz 6015. I will be replacing my old Klipsch surrounds with the surround speakers and the Dolby Atmos speakers when funds support it.
Wow just wow. These speakers are top quality. The sound is out of this world. Purchased directly from Martin Logan. Shipping was fast and product was awesomely packaged. Finish on speakers are top notch. Hooked up these speakers with the matching martin Logan center channel on my Marantz 6014 and I must say it’s a major upgrade from my klipch towers.
Prior to purchasing this system, I compared with the B&W in its price range, the B&W had very good clarity but was a little flat on the bass. The Martin Logan’s had the same clarity with substantially better bass output. ML was the winner in my books.
