In-Ceiling Speaker

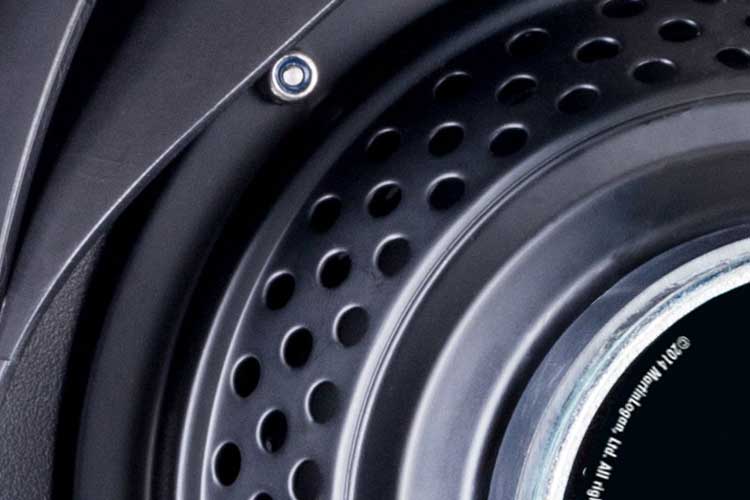

Titanium dome tweeters and mineral-filled polypropylene drivers ensure great performance, while bezel-free paintable grilles that are secured with high-strength magnets provide an aesthetic that blends invisibly into any room. Each model comes with an extremely robust mounting-lock system that couples with the speaker’s vibration-resistant ABS chassis when installed.
Price when discontinued:
$249.95
each
The Installer Series™ by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.
|
Frequency Response |
70–20,000 Hz ±2dB |
|
Aiming |
Rotate speaker assembly |
|
Recommended Amplifier Power |
20—100 watts per channel |
|
Sensitivity |
89 dB/2.83 volts/meter |
|
Impedance |
8 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Crossover Frequency |
2500 Hz |
|
High Frequency Transducer |
1" (2.5cm) titanium dome |
|
Low Frequency Transducer |
6.5" (16.5cm) mineral-filled polypropylene cone |
|
Inputs |
Spring clip accommodates wire up to 12AWG |
|
Weight |
5.3 lbs. (2.4 kg) |
|
Cut-Out Dimensions |
10.375" dia. |
|
Projection From Wall Surface |
0.2" (0.5cm) |
|
Depth Behind Wall Surface |
5.2" (13 cm) |
Quality
Outstanding clarity and quality
